> 4G+GPS Combo Integrated Antennas

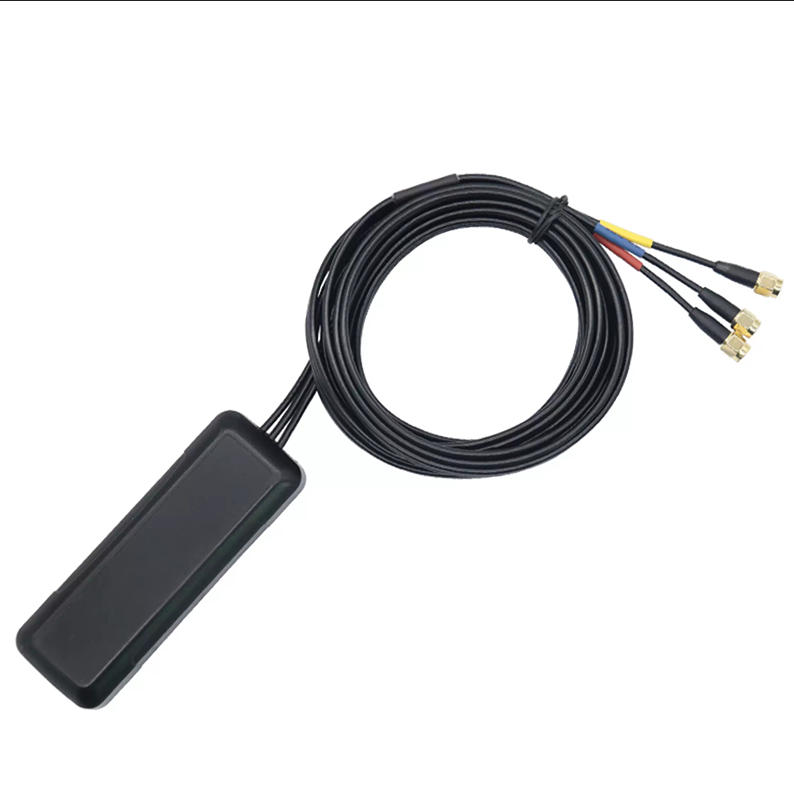

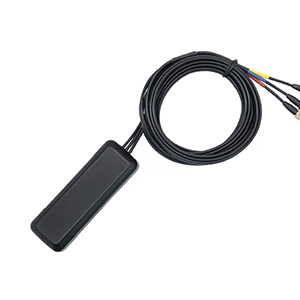

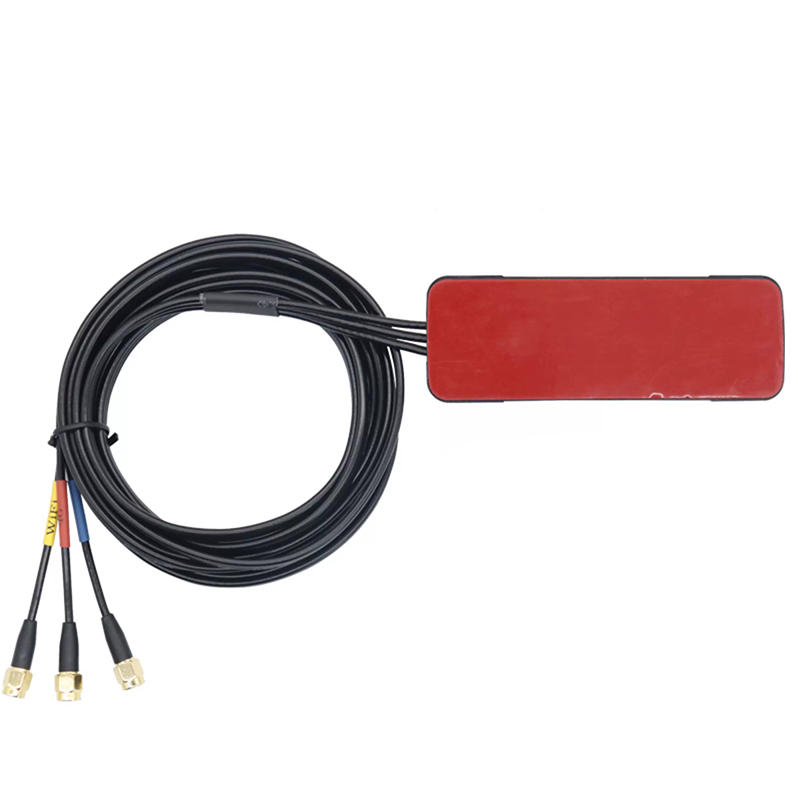

4G WiFi GPS BeiDou 3-in-1 Active Combo Antenna Outdoor Waterproof Cabinet EV Charger Antenna
- 3m RG174 Cable
- SMA Male Connector
- IP67 Waterproof
- Active GNSS 30dBi
- Product description: Vehicle-grade waterproof 4G/WiFi/GNSS 3-in-1 active combo antenna with 3m RG174 cable, SMA connector, ideal for fleet tracking, EV chargers & outdoor IoT cabinet devices.
PRODUCT INTRODUCTION
| Item | Specification |
|---|---|
| Product Type | 4G/WiFi/GPS+BD 3-in-1 Active Combo Antenna |
| Gain | 4G:8dBi, WiFi:8dBi, GPS+BeiDou:30dBi |
| Frequency Range | 4G/WiFi:700-2700MHz; GPS:1575.42MHz; BeiDou:1561MHz |

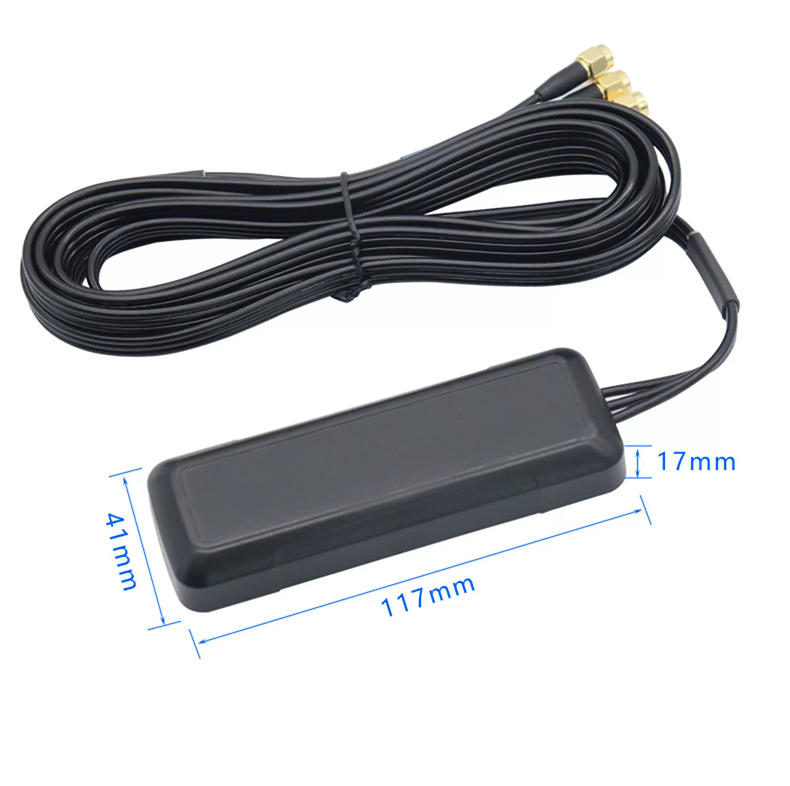

| Dimension | 1174117mm |
| Connector | SMA Male Straight |
| Cable Type | RG174 Coaxial Cable |
| Cable Length | 3 Meters |
| Rated Power | 50W |
| Impedance | 50 Ohm |
| VSWR | ≤1.5 |
| Polarization | Right-hand Circular Polarization (GNSS) |
| Waterproof Grade | IP67 Outdoor Waterproof |
Core Advantages
- All-in-one integrated design, reduces installation holes and wiring workload for cabinet & vehicle projects
- IP67 fully sealed waterproof housing, stable performance under rain, high temperature outdoor environment
- High-gain active GNSS module, fast satellite lock, stable positioning signal in tunnels & suburbs
- Standard SMA male connector, compatible with most fleet trackers, EV chargers and IoT gateways
- 3m long RG174 cable supports flexible hidden installation on truck roof or charging cabinet
Application Scenarios
- EV charging station monitoring cabinet
- Logistics fleet & construction vehicle tracking system
- Outdoor smart DTU, vending machine & solar monitoring equipment
- Industrial outdoor wireless communication cabinets
-
-
If you need bulk supply of waterproof multi-band combo antennas for your tracking or charging business, feel free to contact us for reliable bulk order support.
