> Active GNSS Combo External Antennas

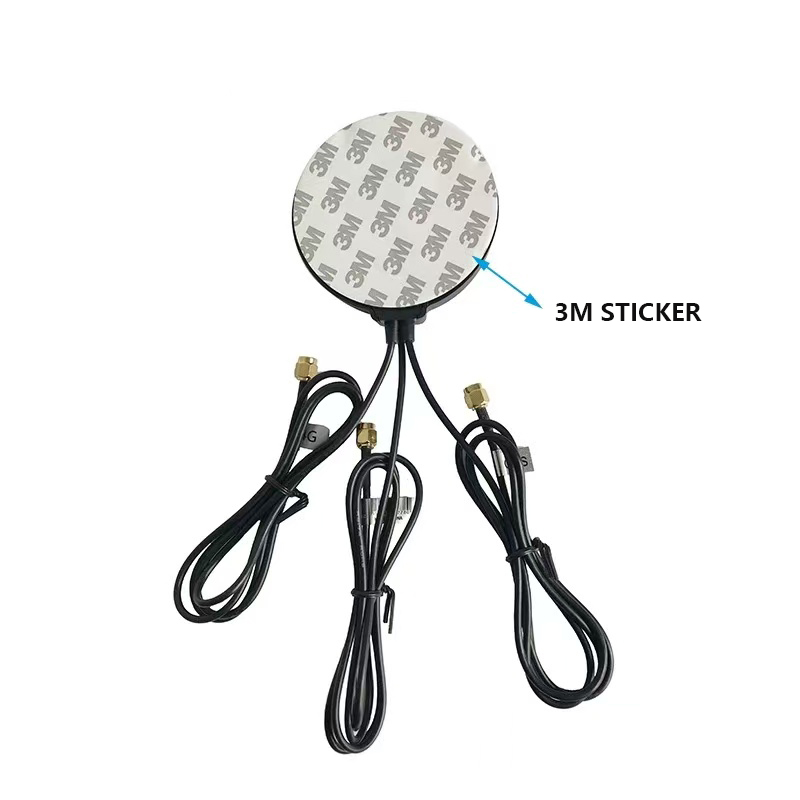

3M Adhesive 3-in-1 Vehicle Tracking Combo Antenna GNSS 4G LTE WiFi SMA Male
- Band: 4G 700-2700MHz / 2.4G WiFi / GPS Beidou
- Gain: 7dBi(4G) / 6dBi(WiFi) / 28dBi(GNSS)
- Waterproof: IP67 Outdoor
- Connector: SMA Male
- Product description: IP67 waterproof 3M adhesive vehicle tracking antenna integrates GNSS, full-band 4G LTE & 2.4G WiFi with SMA male connector, perfect for hidden installation of truck trackers and asset monitoring devic
PRODUCT INTRODUCTION

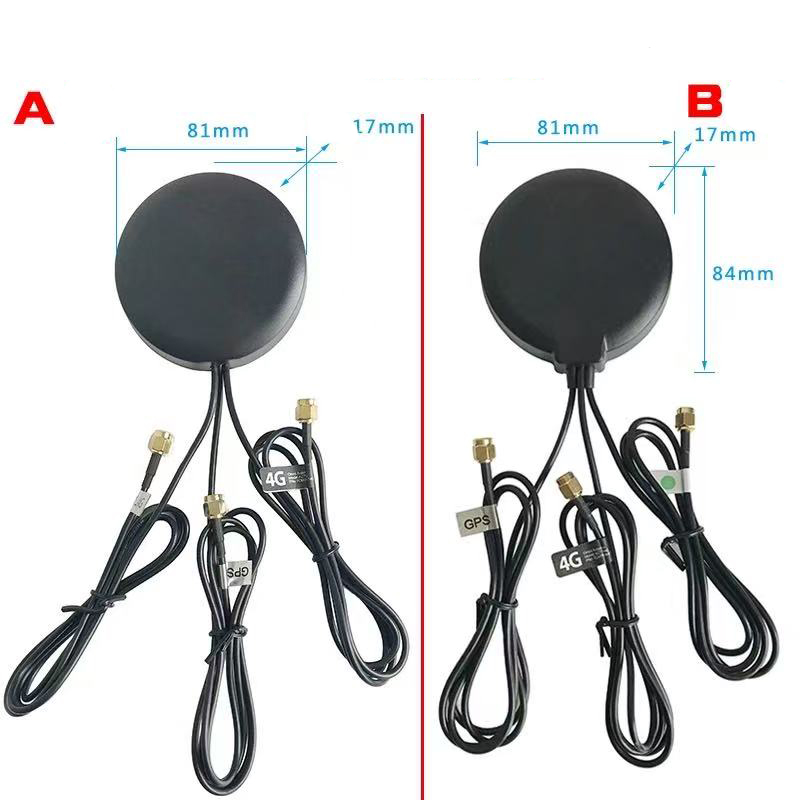

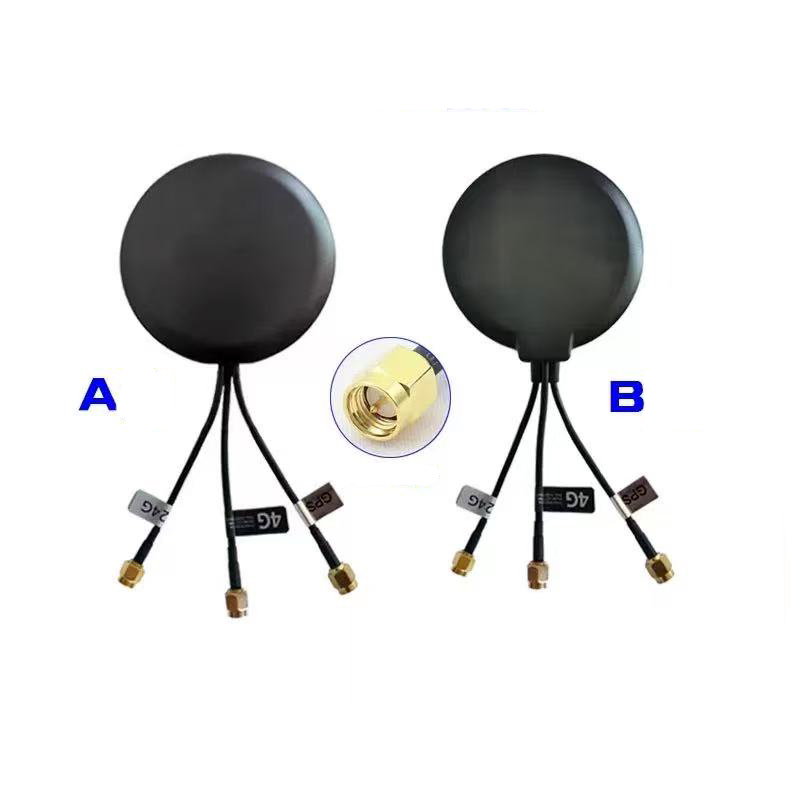

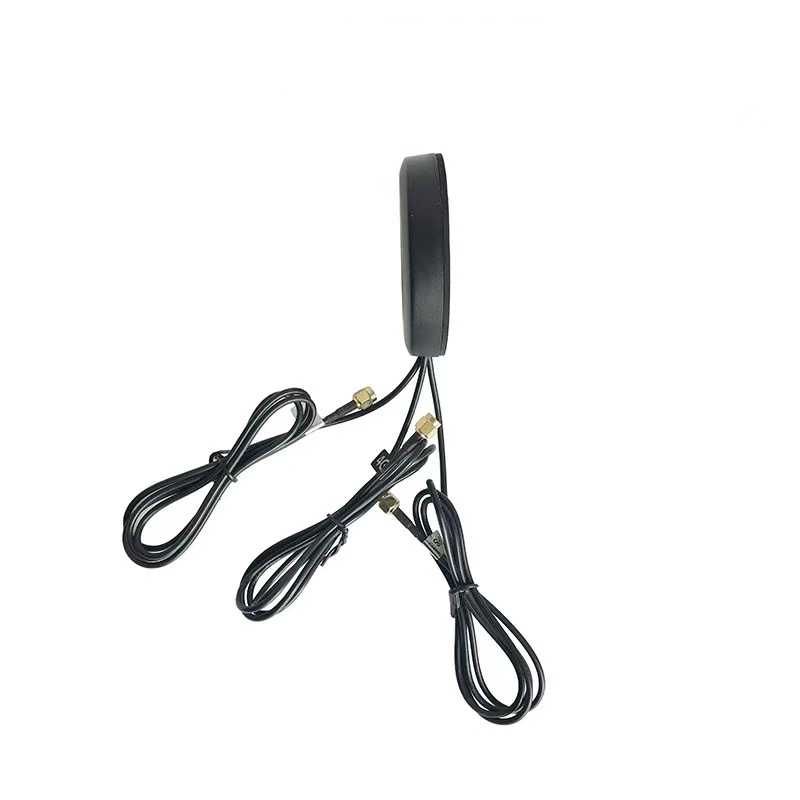

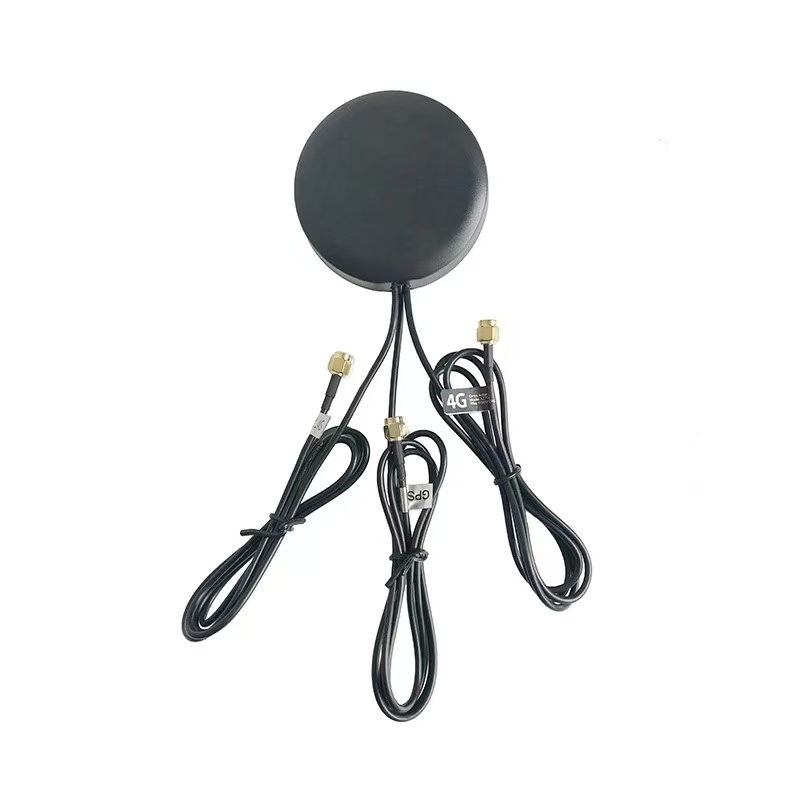

3 In 1 GSM LTE 4G WiFi GPS Beidou Combo Antenna, Outdoor IP67 Waterproof High Gain Cabinet Antenna with 3 RG174 SMA Cables
| Item | Specifications |
| Combination Mode | 4G LTE + 2.4G WiFi + GPS/Beidou 3-in-1 |
| Frequency Band | 4G:700-2700MHzWiFi:2400-2500MHzGNSS:1575.42MHz(GPS)/1561MHz(Beidou) |
| Antenna Gain | 4G:7dBi, WiFi:6dBi, GNSS:28dBi |
| VSWR | ≤1.8 |
| Impedance | 50Ω |
| Waterproof Grade | IP67 Outdoor Waterproof |
| Cable Type | RG174 Coaxial Cable ×3 |
| Standard Cable Length | 1.5m, Customizable Length Available |
| Connector | SMA Male Pin (Support TNC/FAKRA Customization) |
| Mounting Way | Screw Through-hole Mount / Cabinet Installation |
| Housing Material | UV-resistant ABS Plastic |
| Operating Temp | -20℃ ~ +80℃ |
| Application | Telemetry Cabinet, Vending Machine, Vehicle Tracker, Unattended Retail, IoT Remote Monitoring Equipment |
