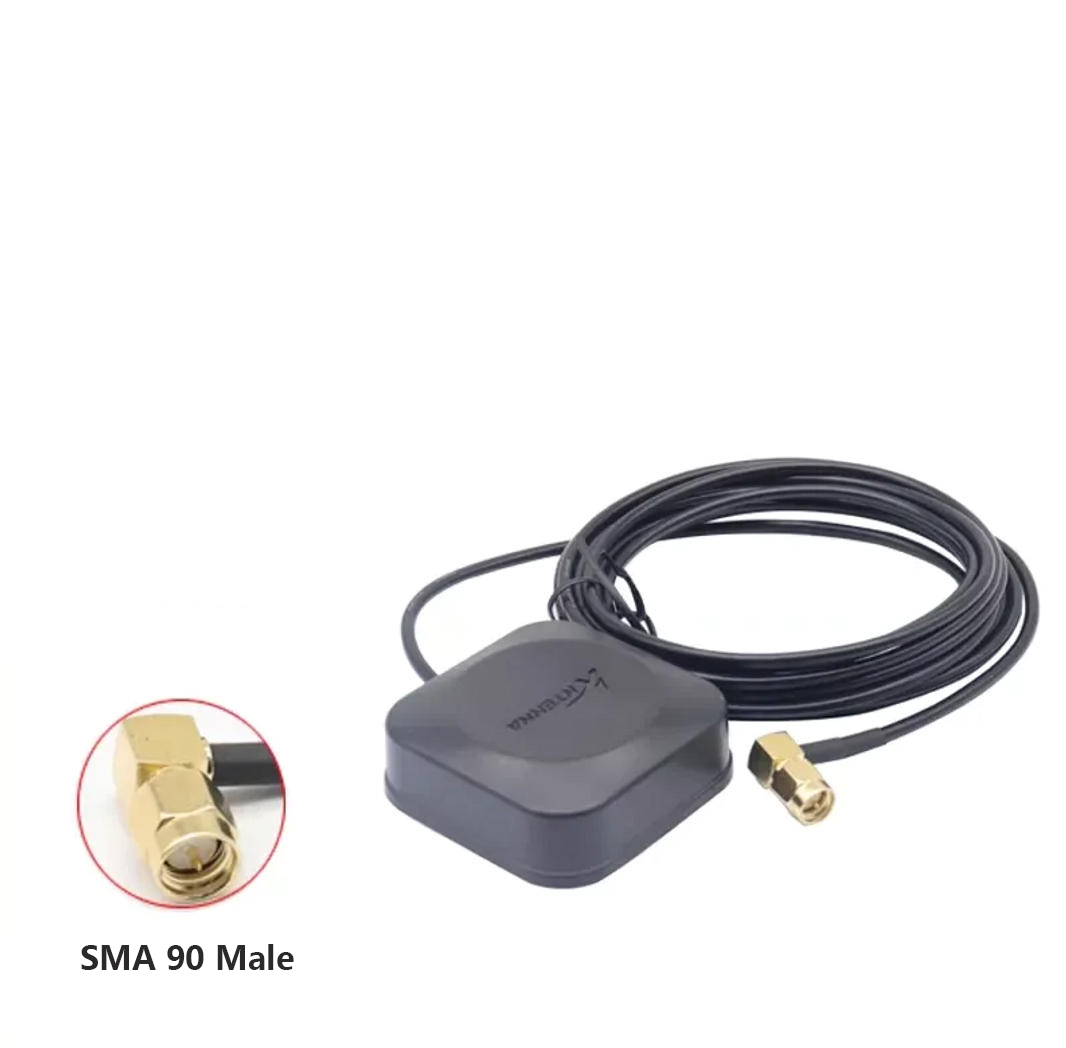

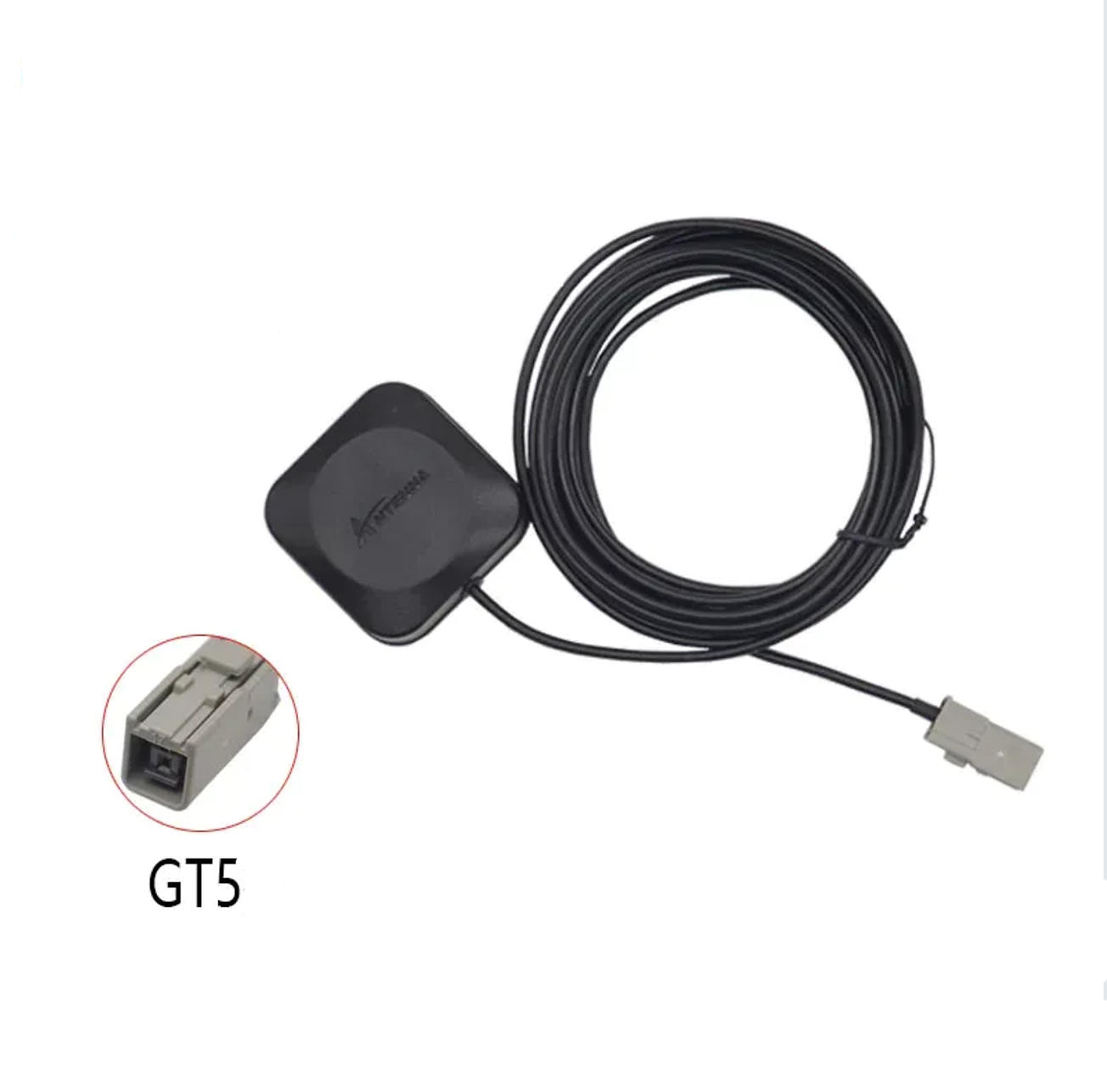

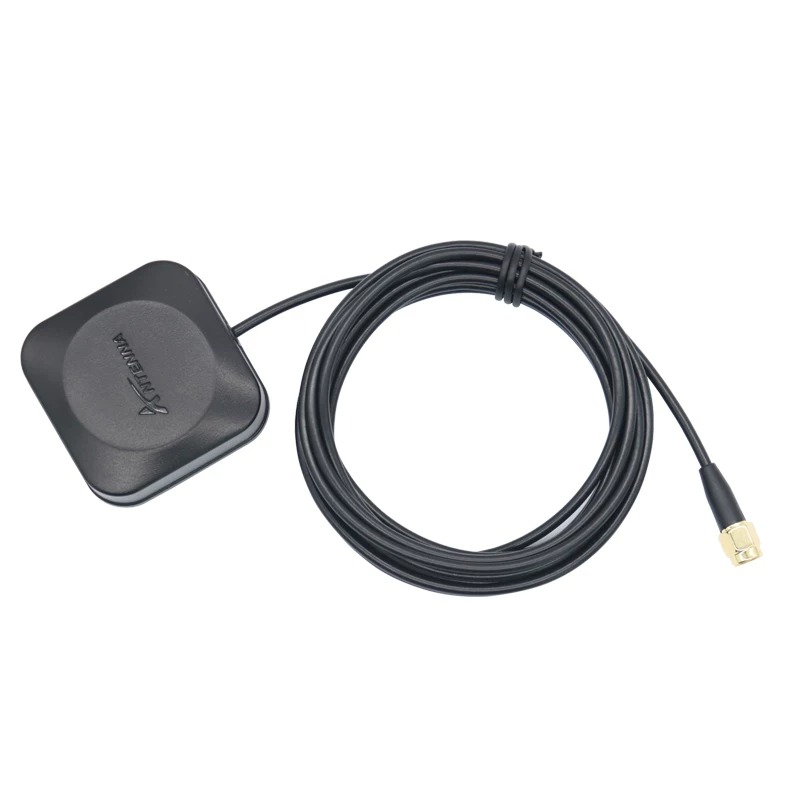

Active High-Gain External GNSS Antenna | GPS + Beidou + GLONASS Triple-Mode Satellite Positioning Antenna
- Triple-mode GPS/BD/GLONASS
- 35dB High LNA Gain
- Magnetic Mount, RG174 Cable
- -40℃~+85℃ Wide Temp Range
- Product description: Our triple-mode active GNSS antenna supports GPS, Beidou and GLONASS satellite systems with 4.5dBi antenna gain and 35dB LNA gain. Magnetic mounting design with RG174 cable, wide working temperature -
PRODUCT INTRODUCTION
Product Overview
This triple-mode active GNSS antenna supports GPS, Beidou and GLONASS three satellite navigation systems. Built-in high-gain LNA amplifier ensures stable signal reception. Equipped with magnetic base and RG174 coaxial cable, it is widely used for vehicle tracking, fleet management, agricultural machinery, ship navigation and IoT positioning devices.
| Parameter | Specification |
|---|---|
| Product Name | GPS + Beidou + GLONASS Vehicle Navigation Antenna |
| Antenna Gain | 4.5 dBi |
| Frequency Bands | 1575.42 MHz / 1561 MHz / 1602 ±2 MHz |
| Overall Size | 50 50 17 mm |
| Connector | SMA Male Pin / FAKRA-C |
| Cable Type | RG174 Cable, 3000mm Length |
| LNA Gain | 35 dB |
| Impedance | 50 Ω |
| VSWR | ≤1.5 |
| Polarization | Right-hand Circular Polarization |
| Mounting Type | Magnetic Mount |
| Housing Color | Black |
| Category | Parameter | Specification |
|---|---|---|
| LNA Performance | LNA Gain | 35 dB |
| VSWR | ≤2.0 | |
| Noise Figure | ≤2.0 dB | |
| DC Operating Voltage | 3 ~ 5 V | |
| DC Operating Current | ≤20 mA | |
| Operating Conditions | Operating Temperature | -40℃ ~ +85℃ |
| Storage Temperature | -40℃ ~ +85℃ | |
| Humidity Range | 0% ~ 95% (Non-condensing) | |
| Physical & Mechanical Specifications | Overall Size | 505017 mm |
| Mounting Method | Magnetic Mount | |
| Connector | SMA | |
| Housing Color | Black | |
| Cable Specification | RG174, 3000mm Length |
Product Advantages
- Triple-system compatible: Receives GPS, Beidou and GLONASS signals for higher positioning accuracy;
- High gain 35dB LNA amplifier, strong anti-interference, stable signal in complex environments;
- Magnetic adsorption design, easy installation on car roof, metal equipment surface;
- Wide temperature range, suitable for outdoor, vehicle and industrial IoT equipment;
- Standard SMA connector, compatible with most navigation modules and tracking devices;
- Stable supply, flexible MOQ, support customized cable length and connectors.
