> External GSM Antenna

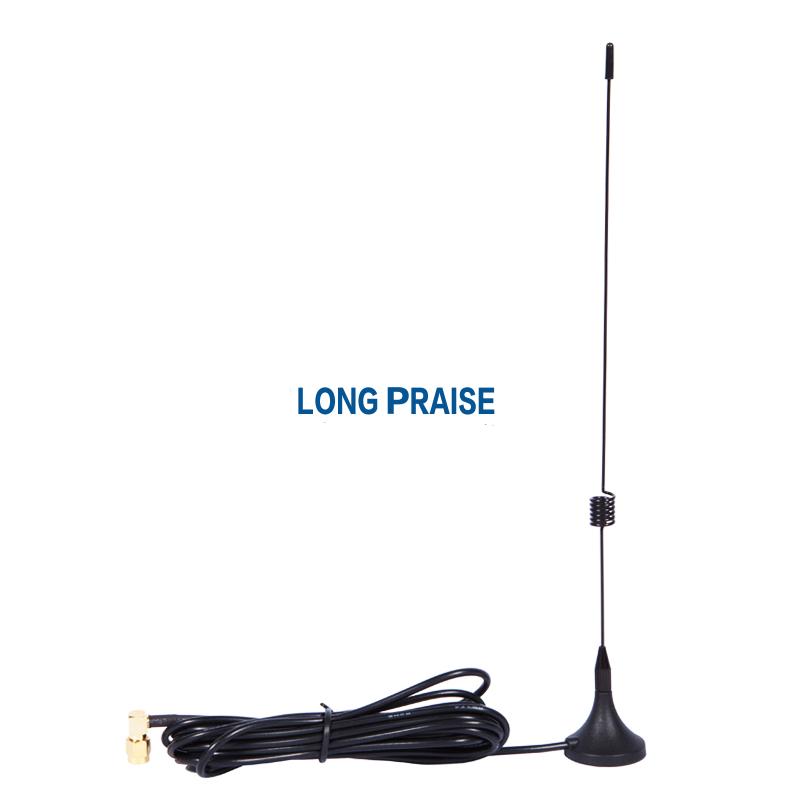

External GSM Whip magnet Antenna LPGM006
- Frequency Range 824~960/1710~2170MHz
- Polarization Linear
- Gain 3.0dBi（Zenith）
- V.S.W.R ＜2.5
- Product description: External GSM Whip magnet Antenna LPGM006
PRODUCT INTRODUCTION
Welcome to our factory.

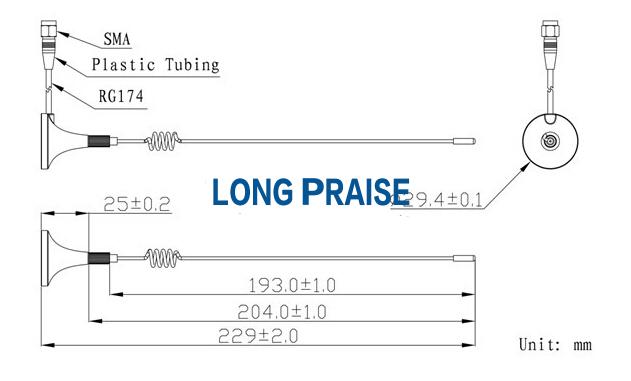

External GSM Whip magnet Antenna
|
Item |
Specifications |
|
|
Antenna |
Frequency Range |
824~960/1710~2170MHz |
|
Polarization |
Linear |
|
|
Gain |
3.0dBi（Zenith） |
|
|
V.S.W.R |
＜2.5 |
|
|
Impedance |
50ohm |
|
|
Mechanical |
Cable |
RG174 |
|
Connector |
SMA or others |
|
|
Mounting Method |
Magnet |
|
|
Environmental |
Operating Temperature |
-40℃~+85℃ |
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
|
Environmentally Friendly |
ROHS Compliant |
|
