> Mini GSM LTE Rubber Rod Antennas
External GSM Antenna LPGM007
- Frequency Range 824-960/1710-2170MHz
- Polarization Linear
- Gain 2dBi(Zenith)
- V.S.W.R <2.0
- Product description: External GSM Antenna LPGM007
PRODUCT INTRODUCTION
Welcome to our factory.

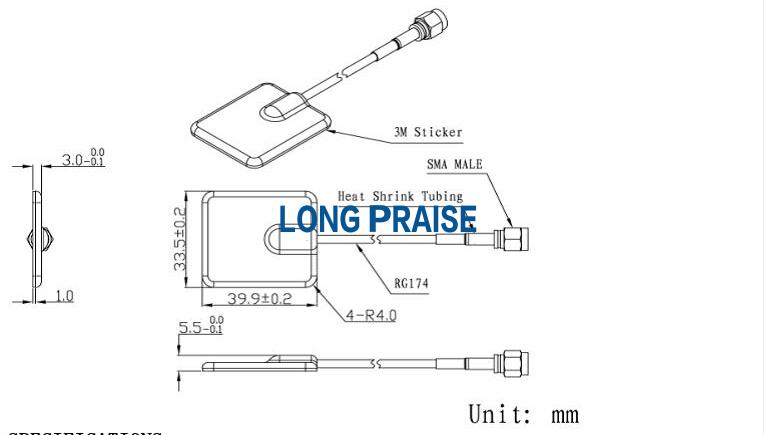

External GSM Antenna
|
Item |
Specifications |
|
|
Antenna |
Frequency Range |
824-960/1710-2170MHz |
|
Polarization |
Linear |
|
|
Gain |
2dBi(Zenith) |
|
|
V.S.W.R |
<2.0 |
|
|
Impedance |
50OHM |
|
|
PCB Dimension |
35*29*0.4mm |
|
|
Mechanical |
Cable |
RG174 |
|
Connector |
SMA or others |
|
|
Material |
ABS |
|
|
Mounting Method |
Adhesive |
|
|
Environmental |
Operating Temperature |
-40-+85degree |
|
Relative Humidity |
Up to 95% |
|
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
|
Environmentally Friendly |
ROHS Compliant |
|
