> Internal GPS patch antenna

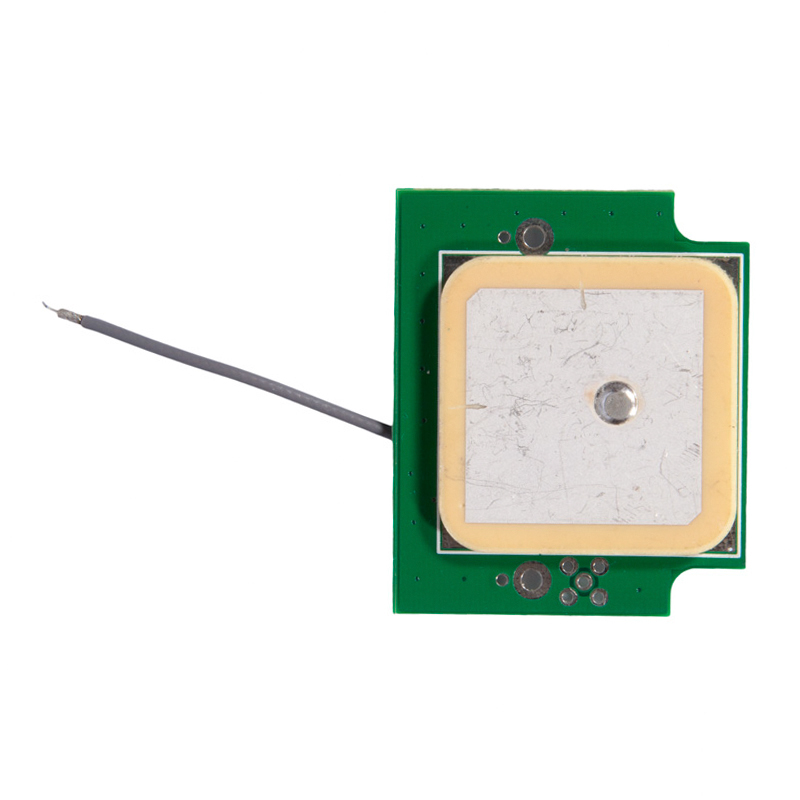

gps patch antenna
- Frequency:1575.42+/-1MHz
- Band Width:CF+/-5MHz
- Polarization:RHCP
- Dimension:39x33x14mm
- Product description: gps patch antenna
PRODUCT INTRODUCTION
Welcome to our factory.
Band Width:CF+/-5MHz
Polarization:RHCP
Gain: 5dBi
V.S.W.R:1.5
Impedance: 50ohm
Axial Ratio: 3dB
Dimension:39x33x14mm
LNA Gain:28+/-2dB
Noise Figure :1.5
Filter Insertion Loss :3dB
Supply Voltage:2.2-5V DC
Current Consumption:5-15mA
Cable: RG174
Connector:SMA/MCX/FAKRA/others
Radome Material:ABS
Mounting Method:Magnet/Adhesive
Vibration:10 to 55Hz with 1.5mm amplitude 2hours
ROHS Compliant
Contact Mary
Sales Manager
E-Mail: mary@antennaseller.com
Wetchat:86-17688250405
Website: www.gpsantenna.net
