> Adhesive Ceramic Patch Antennas

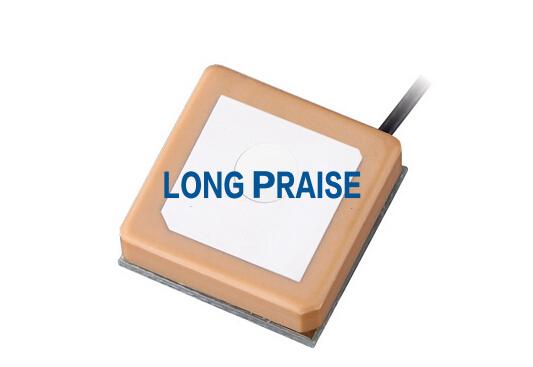

GPS Patch antenna GPS Internal Antenna LPIG0902
- Size:25*25mm or 27.2*27.2*7mm
- Cable:RG0.81,RG1.13,RG1.32 RG174
- Connector:u.fl,w.fl SMA or other
- Fre:1575.42Mhz
- Product description: 1575.42MHz GPS Patch antenna,GPS Internal Antenna LPIG0902 GPS Center±5MHz Band Width RHCP whip antenna,ceramic antenna
PRODUCT INTRODUCTION
Welcome to our factory.
GPS Patch antenna GPS Internal Antenna
|
Item |
Specifications |
|
|
Antenna |
Center Frequency |
1575.42±3MHz |
|
Band Width |
CF±5MHz |
|
|
Polarization |
RHCP |
|
|
Gain |
5dBic（Zenith） |
|
|
V.S.W.R |
＜1.5 |
|
|
Impendance |
50ohm |
|
|
Axial Ratio |
3dB（max） |
|
|

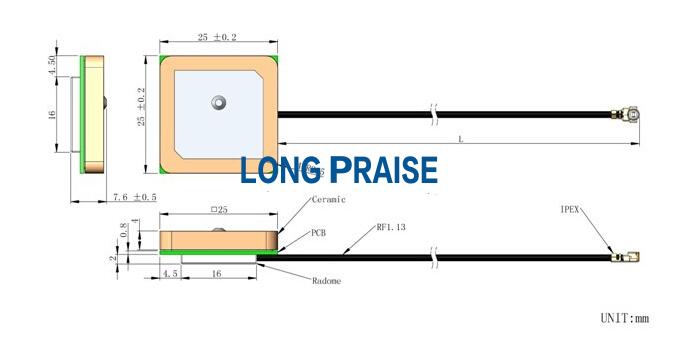

Dimension |
25*25*4mm |
|
|
LNA |
Gain |
15±2dB |
|
Noise Figure |
＜1.5 |
|
|
Supply Voltage |
2.2~5V DC |
|
|
Current Consumption |
5~12mA |
|
|
V.S.W.R |
＜2.0 |
|
|
Mechanical |
Cable |
RF1.13 or others |
|
Connector |
IPEX or others |
|
|
Environmental |
Operating Temperature |
-40℃~+85℃ |
|
Relative Humidity |
Up to 75% |
|
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
|
Environmentally Friendly |
ROHS Compliant |
|
