Item

Specifications

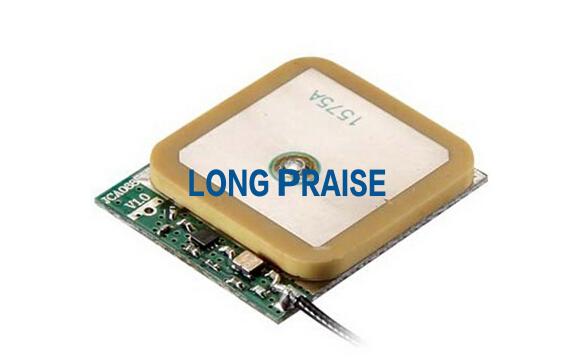

Antenna

Center Frequency

1575.42±3MHz

Band Width

CF±5MHz

Polarization

RHCP

Gain

5dBic（Zenith）

V.S.W.R

＜1.5

Impendance

50ohm

Axial Ratio

3dB（max）

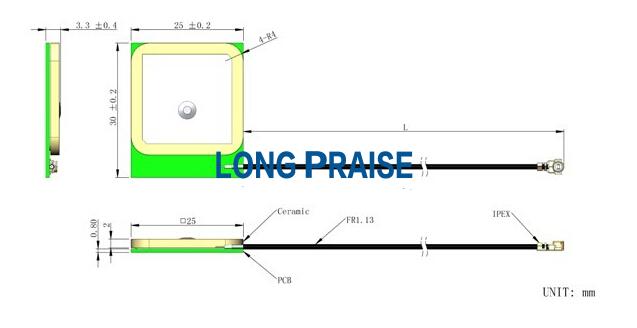

Dimension

25*25*2mm

LNA

Gain

22±2dB

Noise Figure

＜1.5

Ex-band Attenuation

30dB@CF±40MHz

Supply Voltage

3.3V DC

Current Consumption

9mA

V.S.W.R

＜2.0

Mechanical

Cable

RF1.13 or others

Connector

IPEX or others

Environmental

Operating Temperature

-40℃~+85℃

Relative Humidity

Up to 75%

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant
