> 4G antenna

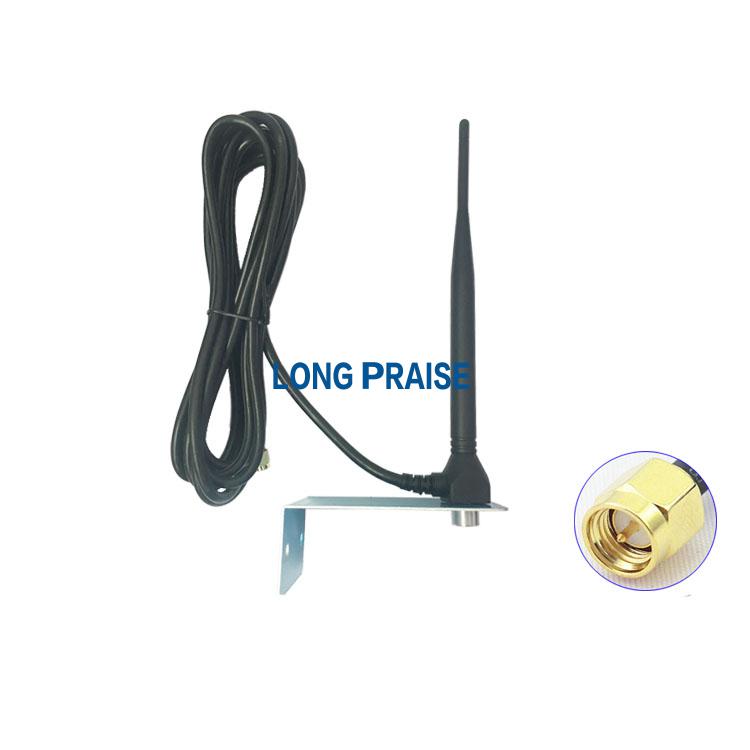

GSM / 3G / 4G bracket antenna fixed antenna easy to install CDMA / GPRS / 3G high gain antenna
- Product description: GSM / 3G / 4G bracket antenna fixed antenna easy to install CDMA / GPRS / 3G high gain antenna
PRODUCT INTRODUCTION
Welcome to our factory.
Electrical
Specifications
Frequency Range (MHz)
850-960/1710-2700MHZ
Bandwidth (MHz)
70/170
Input Impendence (Ω)
50
V.S.W.R
≤2
Gain (dBi)
9
Protect Raiden
Direct Current
Max Input Power (w)
50
Mechanical Specifications
Antenna Length (mm)
20*195mm
Material
ABS
Connect Type
SMA-J
Radiator
Spring antenna
Working Temp
-40~85℃
Mounting
Bracket
Weight (g)
130
Contact Mary
Sales Manager
E-Mail: mary@antennaseller.com
Wetchat:86-17688250405
Website: www.gpsantenna.net
