> 2.4G WLAN WIFI antenna

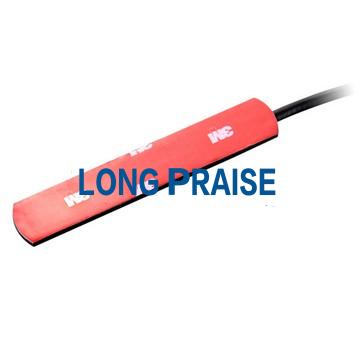

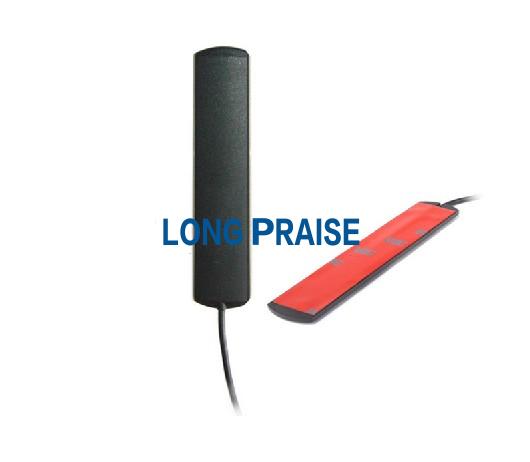

Flat WIFI antenna LPFW001
- Frequency 2400-2483Mhz
- Band width 80Mhz
- Connector SMA/SMB/FAKRA/SMC/WICLIC/AVIC/TNC/BNC
- Gain 3db
- Product description: flat wifi antenna--long praise inc limited, antenna with strong 3m sticker, easy to install!
PRODUCT INTRODUCTION
Welcome to our factory.
Flat WIFI antenna LPFW001
Form 1
|
No. |
Item |
Specifications |
|
1 |
Frequency |
2400-2500 MHz |
|
2 |
V.S.W.R |
<2.0︰1 |
|
3 |
Gain |
2 dBi |
|
4 |
Impedance |
50 ohm |
Mechanical
Form 2
|
No. |
Item |
Specification |
|
1 |
Cable |
RG 174 3m/5m or others |
|
2 |
Connector |
SMA/MMCX or others |
|
3 |
Plastic Housing |
Black |
|
4 |
Mounting |
Adhesive |
