> Car GPS Magnetic Sucker Antennas

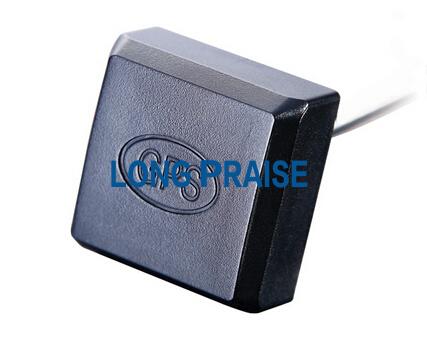

External Car GPS Antenna LPG007
- Center Frequency 1575.42±1MHz
- Band Width CF±5MHz
- Polarization RHCP
- Gain 5dBic(Zenith)
- Product description: External Car GPS Antenna LPG007 Star Search fast signal stability waterproof strong magnetic GPS car antenna
PRODUCT INTRODUCTION
Welcome to our factory.
External Car GPS Antenna
|
Item |
Specifications |
|
|
Antenna |
Center Frequency |
1575.42±1MHz |
|
Band Width |
CF±5MHz |
|
|
Polarization |
RHCP |
|
|
Gain |
5dBic(Zenith) |
|
|
V.S.W.R |
<1.5 |
|
|
Impedance |
50Ω |
|
|
Axial Ratio |
3dB(max) |
|
|
Dimension |
31*39*14mm |
|
|
LNA |
Gain |
28±2dB |
|
Noise Figure |
<1.5 |
|
|
Filter Insertion Loss |
<3dB |
|
|
Ex-band Attenuation |
12dB CF+50MHz/16dB CF-50MHz |
|
|
Supply Voltage |
2.2~5V DC |
|
|
Current Consumption |
5~15mA |
|
|
V.S.W.R |
<2.0 |
|
|
Mechanical |
Cable |
RG174 |
|
Connector |
SMA/MCX/FAKRA or others |
|
|
Radome Material |
ABS |
|
|
Mounting Method |
Screw |
|
|
Environmental |
Operating Temperature |
-40℃~+85℃ |
|
Relative Humidity |
Up to 95% |
|
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
|
Environmentally Friendly |
ROHS Compliant |
|
Company Overview
Long Praise Inc Limited is a professional manufacturer and trader of External GPS antenna,GSM antenna,WLAN antenna, 4G antenna,DVBT antenna. All kinds of antennas pass ROHS certificates and especially GPS antenna get CE/FCC/SGS/ROHS approved. With 4 years exporting experience, Our products are highly praised by our customers. Until now, most of our customers are in EU and USA, all the customers comment our products of EU quality and Chinese Price We are not only equipped with a group of network analyzers, spectrum testers, noise detectors and other advanced apparatus, but also have antenna experts and professional testing sites
Both the quality and price of our products are competitive. We also deliver goods in time and provide perfect after-sale service
Our Services And Advantage
1>. Profession information management system.
2>. Receive small order purchase.
3>. Excellent technology and technicians .
4>. 100% inspection before shipping out.
5>. We are the factory, the price is lower than foreign trade company.
6>. Fast delivery and best packaging.
7>. One-stop service.
8>. Good reputation.
9>.1 Year Warranty
Contact Mary
Sales Manager
E-Mail: mary@antennaseller.com
Wetchat:86-17688250405
Website: www.gpsantenna.net
