Item

Specifications

Antenna&Amplifier

Frequency Range

174-237MHz/1452-1492MHz

Wave Band

DAB BⅢ/L-Band

Polarization

Linear

Impendance

50Ω

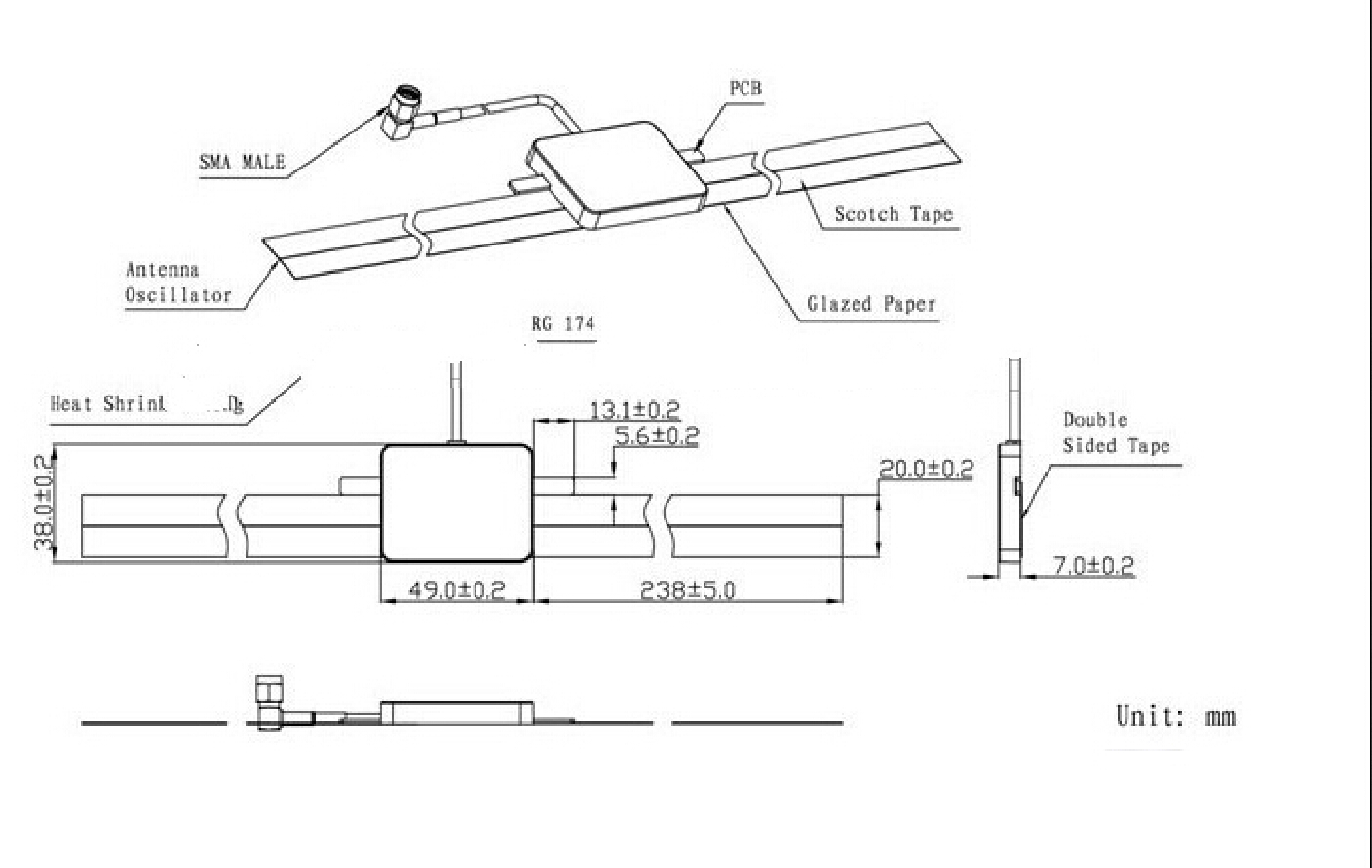

PCB Dimension

75.2*35.2*1.2mm

Gain

BⅢ:10±2dB  L-Band:2dBi

V.S.W.R

<2.0

Supply Voltage

12V DC

Current Consumption

40mA

Mechanical

Cable

RG174

PCB

FR4

Connector

MCX/SMA/FAKRA or others

Mounting Method

Adhesive

Environmental

Operating Temperature

-40℃~+85℃

Relative Humidity

Up to 75%

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant
