> Waterproof Outdoor Omni Antennas

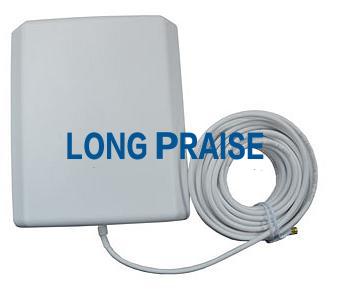

14DBI 700-2700MHz outdoor directional 4G antenna LP4G007
- Frequency range 700-2700MHz
- Gain 14dBi
- Impedance 50ohm
- VSWR <1.8
- Product description: 14DBI 700-2700MHz outdoor directional 4G antenna Panel Antenna N connector wide frequency range with good signal
PRODUCT INTRODUCTION
Welcome to our factory.
14DBI 700-2700MHz outdoor directional 4G antenna
| Model | LP4G007 |
| Frequency range |
700-2700MHz |
|
Gain |
14dBi |
|
Impedance |
50ohm |
|
VSWR |
<1.8 |
|
Polarization |
4G directional antenna |
|
Horizontal |
beam width 90 |
|
Vertical |
beam width 55 |
|
Front to back ratio |
> 15dB |
|
connector |
N-type female |
|
Maximum power |
100W |
|
Lightning Protection |
DC ground |
Main mechanical performance
|
Length |
210mm |
|
Width |
180mm |
|
thickness |
43mm |
|
Mounting Type |
Wall / Irons |
|
Diameter mast |
3 - 5 cm |
|
Antenna Weight |
0.66 kg |
